03-행동 패턴

1. 책임 연쇄(Chain-of-Responsibility) 패턴

1.1 패턴 소개

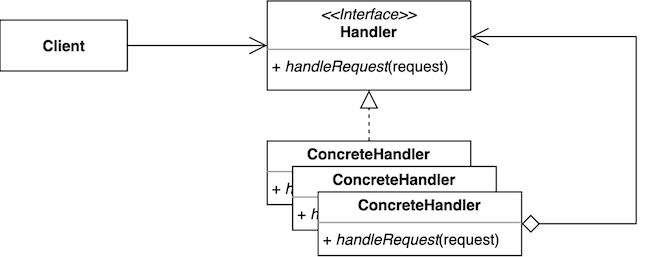

gof_2_15

요청을 보내는 쪽(sender)과 요청을 처리하는 쪽(receiver)의 분리하는 패턴

핸들러 체인을 사용해서 요청을 처리한다

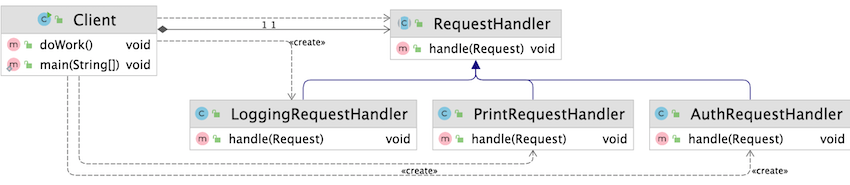

gof_2_16

1.2 예시 - 기존

1// Request.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before;
3
4public class Request {
5
6  private String body;
7
8  public Request(String body) {
9    this.body = body;
10  }
11
12  public String getBody() {
13    return body;
14  }
15
16  public void setBody(String body) {
17    this.body = body;
18  }
19}

1// RequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before;
3
4public class RequestHandler {
5
6  public void handler(Request request) {
7    System.out.println(request.getBody());
8  }
9}

1// AuthRequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before;
3
4public class AuthRequestHandler extends RequestHandler {
5
6  public void handler(Request request) {
7    System.out.println("인증이 되었나?");
8    System.out.println("이 핸들러를 사용할 수 있는 유저인가?");
9    super.handler(request);
10  }
11}

1// LoggingRequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before;
3
4public class LoggingRequestHandler extends RequestHandler {
5
6  @Override
7  public void handler(Request request) {
8    System.out.println("로깅");
9    super.handler(request);
10  }
11}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Request request = new Request("무궁화 꽃이 피었습니다.");
8    RequestHandler requestHandler = new LoggingRequestHandler();
9    requestHandler.handler(request);
10  }
11}

1.3 예시 - 변경

1// RequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before.Request;
5
6public abstract class RequestHandler {
7
8  private RequestHandler nextHandler;
9
10  public RequestHandler(RequestHandler nextHandler) {
11    this.nextHandler = nextHandler;
12  }
13
14  public void handle(Request request) {
15    if (nextHandler != null) {
16      nextHandler.handle(request);
17    }
18  }
19}

1// PrintRequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before.Request;
5
6public class PrintRequestHandler extends RequestHandler {
7
8  public PrintRequestHandler(RequestHandler nextHandler) {
9    super(nextHandler);
10  }
11
12  @Override
13  public void handle(Request request) {
14    System.out.println(request.getBody());
15    super.handle(request);
16  }
17}

1// LoggingRequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before.Request;
5
6public class LoggingRequestHandler extends RequestHandler {
7
8  public LoggingRequestHandler(RequestHandler nextHandler) {
9    super(nextHandler);
10  }
11
12  @Override
13  public void handle(Request request) {
14    System.out.println("로깅");
15    super.handle(request);
16  }
17}

1// AuthRequestHandler.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before.Request;
5
6public class AuthRequestHandler extends RequestHandler {
7
8  public AuthRequestHandler(RequestHandler nextHandler) {
9    super(nextHandler);
10  }
11
12  @Override
13  public void handle(Request request) {
14    System.out.println("인증이 되었는가?");
15    super.handle(request);
16  }
17}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._01_before.Request;
5
6public class Client {
7
8  private RequestHandler requestHandler;
9
10  public Client(RequestHandler requestHandler) {
11    this.requestHandler = requestHandler;
12  }
13
14  public void doWork() {
15    Request request = new Request("이번 놀이는 뽑기입니다.");
16    requestHandler.handle(request);
17  }
18
19  public static void main(String[] args) {
20    RequestHandler chain = new AuthRequestHandler(
21      new LoggingRequestHandler(new PrintRequestHandler(null))
22    );
23    Client client = new Client(chain);
24    client.doWork();
25  }
26}

1.4 장단점

장점
- 클라이언트 코드를 변경하지 않고 새로운 핸들러를 체인에 추가할 수 있다.
- 각각의 체인은 자신이 해야하는 일만 한다.
- 체인을 다양한 방법으로 구성할 수 있다.
단점
- 디버깅이 조금 어렵다

1.5 실무에서 어떻게 쓰이나?

자바 : 서블릿 필터

1// CoRInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._03_java;
3
4import java.io.IOException;
5import javax.servlet.*;
6
7public class CoRInJava {
8
9  public static void main(String[] args) {
10    Filter filter = new Filter() {
11      @Override
12      public void doFilter(
13        ServletRequest request,
14        ServletResponse response,
15        FilterChain chain
16      ) throws IOException, ServletException {
17        // TODO 전처리
18        chain.doFilter(request, response);
19        // TODO 후처리
20      }
21    };
22  }
23}

1// MyFilter.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._03_java;
3
4import java.io.IOException;
5import javax.servlet.*;
6import javax.servlet.annotation.WebFilter;
7
8@WebFilter(urlPatterns = "/hello")
9public class MyFilter implements Filter {
10
11  @Override
12  public void doFilter(
13    ServletRequest request,
14    ServletResponse response,
15    FilterChain chain
16  ) throws IOException, ServletException {
17    System.out.println("게임에 참하신 여러분 모두 진심으로 환영합니다.");
18    chain.doFilter(request, response);
19    System.out.println("꽝!");
20  }
21}

1// App.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._03_java;
3
4import org.springframework.boot.SpringApplication;
5import org.springframework.boot.autoconfigure.SpringBootApplication;
6import org.springframework.boot.web.servlet.ServletComponentScan;
7
8@ServletComponentScan
9@SpringBootApplication
10public class App {
11
12  public static void main(String[] args) {
13    SpringApplication.run(App.class, args);
14  }
15}

1// HelloController.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._03_java;
3
4import org.springframework.web.bind.annotation.GetMapping;
5import org.springframework.web.bind.annotation.RestController;
6
7@RestController
8public class HelloController {
9
10  @GetMapping("/hello")
11  public String hello() {
12    return "hello";
13  }
14}

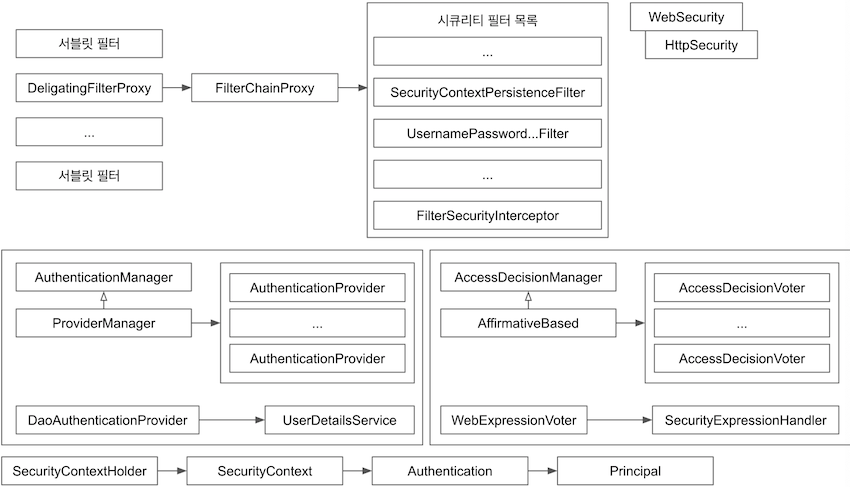

gof_3_3

스프링 : 스프링 시큐리티 필터

1// SecurityConfig.java
2package me.whiteship.designpatterns._03_behavioral_patterns._13_chain_of_responsibilities._03_java;
3
4import org.springframework.context.annotation.Configuration;
5import org.springframework.security.config.annotation.web.builders.HttpSecurity;
6import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
7
8@Configuration
9public class SecurityConfig extends WebSecurityConfigurerAdapter {
10
11  @Override
12  protected void configure(HttpSecurity http) throws Exception {
13    http.authorizeRequests().anyRequest().permitAll().and();
14  }
15}

2. 커맨드(Command) 패턴

2.1 패턴 소개

gof_3_4

요청을 캡슐화 하여 호출자(invoker)와 수신자(receiver)를 분리하는 패턴.

요청을 처리하는 방법이 바뀌더라도, 호출자의 코드는 변경되지 않는다

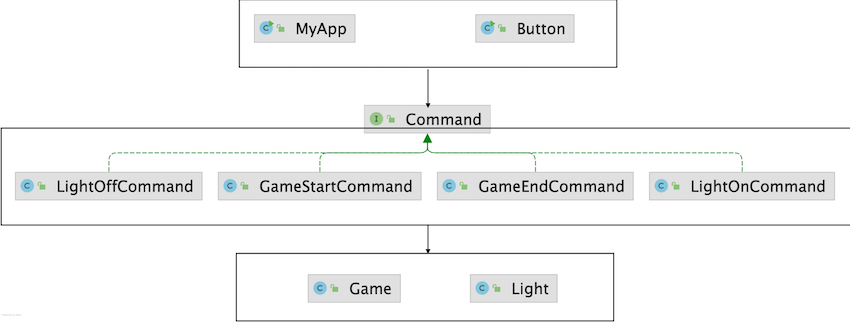

gof_3_5

2.2 예시 - 기존

1// Light.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before;
3
4public class Light {
5
6  private boolean isOn;
7
8  public void on() {
9    System.out.println("불을 켭니다.");
10    this.isOn = true;
11  }
12
13  public void off() {
14    System.out.println("불을 끕니다.");
15    this.isOn = false;
16  }
17
18  public boolean isOn() {
19    return this.isOn;
20  }
21}

1// Game.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before;
3
4public class Game {
5
6  private boolean isStarted;
7
8  public void start() {
9    System.out.println("게임을 시작합니다.");
10    this.isStarted = true;
11  }
12
13  public void end() {
14    System.out.println("게임을 종료합니다.");
15    this.isStarted = false;
16  }
17
18  public boolean isStarted() {
19    return isStarted;
20  }
21}

1// Button.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before;
3
4public class Button {
5
6  private Light light;
7
8  public Button(Light light) {
9    this.light = light;
10  }
11
12  public void press() {
13    light.off();
14  }
15
16  public static void main(String[] args) {
17    Button button = new Button(new Light());
18    button.press();
19    button.press();
20    button.press();
21    button.press();
22  }
23}

1// MyApp.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before;
3
4public class MyApp {
5
6  private Game game;
7
8  public MyApp(Game game) {
9    this.game = game;
10  }
11
12  public void press() {
13    game.start();
14  }
15
16  public static void main(String[] args) {
17    Button button = new Button(new Light());
18    button.press();
19    button.press();
20    button.press();
21    button.press();
22  }
23}

2.3 예시 - 변경

1// Command.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4public interface Command {
5  void execute();
6
7  void undo();
8}

1// GameEndCommand.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Game;
5
6public class GameEndCommand implements Command {
7
8  private Game game;
9
10  public GameEndCommand(Game game) {
11    this.game = game;
12  }
13
14  @Override
15  public void execute() {
16    game.end();
17  }
18
19  @Override
20  public void undo() {
21    new GameStartCommand(this.game).execute();
22  }
23}

1// GameStartCommand.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Game;
5
6public class GameStartCommand implements Command {
7
8  private Game game;
9
10  public GameStartCommand(Game game) {
11    this.game = game;
12  }
13
14  @Override
15  public void execute() {
16    game.start();
17  }
18
19  @Override
20  public void undo() {
21    new GameEndCommand(this.game).execute();
22  }
23}

1// LightOffCommand.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Light;
5
6public class LightOffCommand implements Command {
7
8  private Light light;
9
10  public LightOffCommand(Light light) {
11    this.light = light;
12  }
13
14  @Override
15  public void execute() {
16    light.off();
17  }
18
19  @Override
20  public void undo() {
21    new LightOnCommand(this.light).execute();
22  }
23}

1// LightOnCommand.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Light;
5
6public class LightOnCommand implements Command {
7
8  private Light light;
9
10  public LightOnCommand(Light light) {
11    this.light = light;
12  }
13
14  @Override
15  public void execute() {
16    light.on();
17  }
18
19  @Override
20  public void undo() {
21    new LightOffCommand(this.light).execute();
22  }
23}

1// Button.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import java.util.Stack;
5import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Game;
6import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Light;
7
8public class Button {
9
10  private Stack<Command> commands = new Stack<>();
11
12  public void press(Command command) {
13    command.execute();
14    commands.push(command);
15  }
16
17  public void undo() {
18    if (!commands.isEmpty()) {
19      Command command = commands.pop();
20      command.undo();
21    }
22  }
23
24  public static void main(String[] args) {
25    Button button = new Button();
26    button.press(new GameStartCommand(new Game()));
27    button.press(new LightOnCommand(new Light()));
28    button.undo();
29    button.undo();
30  }
31}

1// MyApp.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after;
3
4import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Game;
5
6public class MyApp {
7
8  private Command command;
9
10  public MyApp(Command command) {
11    this.command = command;
12  }
13
14  public void press() {
15    command.execute();
16  }
17
18  public static void main(String[] args) {
19    MyApp myApp = new MyApp(new GameStartCommand(new Game()));
20  }
21}

2.4 장단점

장점
- 기존 코드를 변경하지 않고 새로운 커맨드를 만들 수 있다.
- 수신자의 코드가 변경되어도 호출자의 코드는 변경되지 않는다.
- 커맨드 객체를 로깅, DB에 저장, 네트워크로 전송 하는 등 다양한 방법으로 활용할 수도 있다.
단점 : 코드가 복잡하고 클래스가 많아진다

2.5 실무에서 어떻게 쓰이나?

자바

Runnable
람다
메소드 레퍼런스

1// CommandInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._03_java;
3
4import java.util.concurrent.ExecutorService;
5import java.util.concurrent.Executors;
6import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Game;
7import me.whiteship.designpatterns._03_behavioral_patterns._14_command._01_before.Light;
8
9public class CommandInJava {
10
11  public static void main(String[] args) {
12    Light light = new Light();
13    Game game = new Game();
14    ExecutorService executorService = Executors.newFixedThreadPool(4);
15    executorService.submit(light::on);
16    executorService.submit(game::start);
17    executorService.submit(game::end);
18    executorService.submit(light::off);
19    executorService.shutdown();
20  }
21}

스프링

SimpleJdbcInsert
SimpleJdbcCall

1// CommandInSpring.java
2package me.whiteship.designpatterns._03_behavioral_patterns._14_command._03_java;
3
4import java.time.LocalDateTime;
5import java.util.HashMap;
6import java.util.Map;
7import javax.sql.DataSource;
8import me.whiteship.designpatterns._03_behavioral_patterns._14_command._02_after.Command;
9import org.springframework.jdbc.core.simple.SimpleJdbcInsert;
10
11public class CommandInSpring {
12
13  private DataSource dataSource;
14
15  public CommandInSpring(DataSource dataSource) {
16    this.dataSource = dataSource;
17  }
18
19  public void add(Command command) {
20    SimpleJdbcInsert insert = new SimpleJdbcInsert(dataSource)
21      .withTableName("command")
22      .usingGeneratedKeyColumns("id");
23
24    Map<String, Object> data = new HashMap<>();
25    data.put("name", command.getClass().getSimpleName());
26    data.put("when", LocalDateTime.now());
27    insert.execute(data);
28  }
29}

3. 인터프리터(Interpreter) 패턴

3.1 패턴 소개

gof_3_6

자주 등장하는 문제를 간단한 언어로 정의하고 재사용하는 패턴.

반복되는 문제 패턴을 언어 또는 문법으로 정의하고 확장할 수 있다

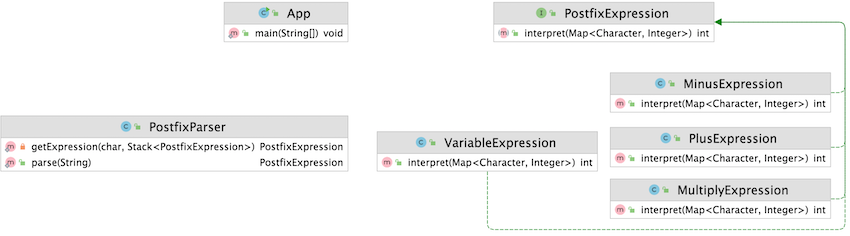

gof_3_7

3.2 예시 - 기존

1// PostfixNotation.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._01_before;
3
4import java.util.Stack;
5
6public class PostfixNotation {
7
8  private final String expression;
9
10  public PostfixNotation(String expression) {
11    this.expression = expression;
12  }
13
14  public static void main(String[] args) {
15    PostfixNotation postfixNotation = new PostfixNotation("123+-");
16    postfixNotation.calculate();
17  }
18
19  private void calculate() {
20    Stack<Integer> numbers = new Stack<>();
21
22    for (char c : this.expression.toCharArray()) {
23      switch (c) {
24        case '+':
25          numbers.push(numbers.pop() + numbers.pop());
26          break;
27        case '-':
28          int right = numbers.pop();
29          int left = numbers.pop();
30          numbers.push(left - right);
31          break;
32        default:
33          numbers.push(Integer.parseInt(c + ""));
34      }
35    }
36
37    System.out.println(numbers.pop());
38  }
39}

3.3 예시 - 변경 방법1

1// PostfixParser.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Stack;
5
6public class PostfixParser {
7
8  public static PostfixExpression parse(String expression) {
9    Stack<PostfixExpression> stack = new Stack<>();
10    for (char c : expression.toCharArray()) {
11      stack.push(getExpression(c, stack));
12    }
13    return stack.pop();
14  }
15
16  private static PostfixExpression getExpression(
17    char c,
18    Stack<PostfixExpression> stack
19  ) {
20    switch (c) {
21      case '+':
22        return new PlusExpression(stack.pop(), stack.pop());
23      case '-':
24        PostfixExpression right = stack.pop();
25        PostfixExpression left = stack.pop();
26        return new MinusExpression(left, right);
27      default:
28        return new VariableExpression(c);
29    }
30  }
31}

1// PostfixExpression.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public interface PostfixExpression {
7  int interpret(Map<Character, Integer> context);
8}

1// VariableExpression.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public class VariableExpression implements PostfixExpression {
7
8  private Character character;
9
10  public VariableExpression(Character character) {
11    this.character = character;
12  }
13
14  @Override
15  public int interpret(Map<Character, Integer> context) {
16    return context.get(this.character);
17  }
18}

1// PlusExpression.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public class PlusExpression implements PostfixExpression {
7
8  private PostfixExpression left;
9
10  private PostfixExpression right;
11
12  public PlusExpression(PostfixExpression left, PostfixExpression right) {
13    this.left = left;
14    this.right = right;
15  }
16
17  @Override
18  public int interpret(Map<Character, Integer> context) {
19    return left.interpret(context) + right.interpret(context);
20  }
21}

1// MinusExpression.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public class MinusExpression implements PostfixExpression {
7
8  private PostfixExpression left;
9
10  private PostfixExpression right;
11
12  public MinusExpression(PostfixExpression left, PostfixExpression right) {
13    this.left = left;
14    this.right = right;
15  }
16
17  @Override
18  public int interpret(Map<Character, Integer> context) {
19    return left.interpret(context) - right.interpret(context);
20  }
21}

1// MultiplyExpression.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public class MultiplyExpression implements PostfixExpression {
7
8  private PostfixExpression left, right;
9
10  public MultiplyExpression(PostfixExpression left, PostfixExpression right) {
11    this.left = left;
12    this.right = right;
13  }
14
15  @Override
16  public int interpret(Map<Character, Integer> context) {
17    return left.interpret(context) * right.interpret(context);
18  }
19}

1// App.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._02_after;
3
4import java.util.Map;
5
6public class App {
7
8  public static void main(String[] args) {
9    PostfixExpression expression = PostfixParser.parse("xyz+-a+");
10    int result = expression.interpret(Map.of('x', 1, 'y', 2, 'z', 3, 'a', 4));
11    System.out.println(result);
12  }
13}

3.4 예시 - 변경 방법2

1// PostfixExpression.java
2public interface PostfixExpression {
3  int interpret(Map<Character, Integer> context);
4
5  static PostfixExpression plus(
6    PostfixExpression left,
7    PostfixExpression right
8  ) {
9    return context -> left.interpret(context) + right.interpret(context);
10  }
11
12  static PostfixExpression minus(
13    PostfixExpression left,
14    PostfixExpression right
15  ) {
16    return context -> left.interpret(context) - right.interpret(context);
17  }
18
19  static PostfixExpression variable(Character c) {
20    return context -> context.get(c);
21  }
22}

1// PostfixParser.java
2public class PostfixParser {
3
4  public static PostfixExpression parse(String expression) {
5    Stack<PostfixExpression> stack = new Stack<>();
6    for (char c : expression.toCharArray()) {
7      stack.push(getExpression(c, stack));
8    }
9    return stack.pop();
10  }
11
12  private static PostfixExpression getExpression(
13    char c,
14    Stack<PostfixExpression> stack
15  ) {
16    switch (c) {
17      case '+':
18        return PostfixExpression.plus(stack.pop(), stack.pop());
19      case '-':
20        PostfixExpression right = stack.pop();
21        PostfixExpression left = stack.pop();
22        return PostfixExpression.minus(left, right);
23      default:
24        return PostfixExpression.variable(c);
25    }
26  }
27}

3.5 장단점

장점
- 자주 등장하는 문제 패턴을 언어와 문법으로 정의할 수 있다.
- 기존 코드를 변경하지 않고 새로운 Expression을 추가할 수 있다.
단점 : 복잡한 문법을 표현하려면 Expression과 Parser가 복잡해진다

3.6 실무에서 어떻게 쓰이나?

자바

자바 컴파일러
정규 표현식

1// InterpreterInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._03_java;
3
4import java.util.regex.Pattern;
5
6public class InterpreterInJava {
7
8  public static void main(String[] args) {
9    System.out.println(Pattern.matches(".pr...", "spring"));
10    System.out.println(Pattern.matches("[a-z]{6}", "spring"));
11    System.out.println(Pattern.matches("white[a-z]{4}[0-9]{4}", "whiteship2000"));
12    System.out.println(Pattern.matches("\\d", "1")); // one digit
13    System.out.println(Pattern.matches("\\D", "a")); // one non-digit
14  }
15}

스프링

SpEL (스프링 Expression Language)

1// InterpreterInSpring.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._03_java;
3
4import org.springframework.expression.Expression;
5import org.springframework.expression.ExpressionParser;
6import org.springframework.expression.spel.standard.SpelExpressionParser;
7
8public class InterpreterInSpring {
9
10  public static void main(String[] args) {
11    Book book = new Book("spring");
12
13    ExpressionParser parser = new SpelExpressionParser();
14    Expression expression = parser.parseExpression("title");
15    System.out.println(expression.getValue(book));
16  }
17}

1// MyService.java
2package me.whiteship.designpatterns._03_behavioral_patterns._15_interpreter._03_java;
3
4import org.springframework.beans.factory.annotation.Value;
5import org.springframework.boot.ApplicationArguments;
6import org.springframework.boot.ApplicationRunner;
7import org.springframework.stereotype.Service;
8
9@Service
10public class MyService implements ApplicationRunner {
11
12  @Value("#{2 + 5}")
13  private String value;
14
15  @Override
16  public void run(ApplicationArguments args) throws Exception {
17    System.out.println(value);
18  }
19}

4. 이터레이터(Interator) 패턴

4.1 패턴 소개

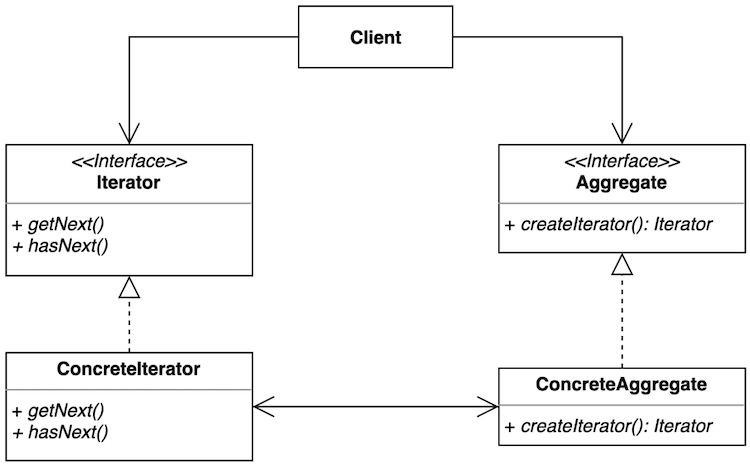

gof_3_8

집합 객체 내부 구조를 노출시키지 않고 순회 하는 방법을 제공하는 패턴
집합 객체를 순회하는 클라이언트 코드를 변경하지 않고 다양한 순회 방법을 제공할 수 있다.

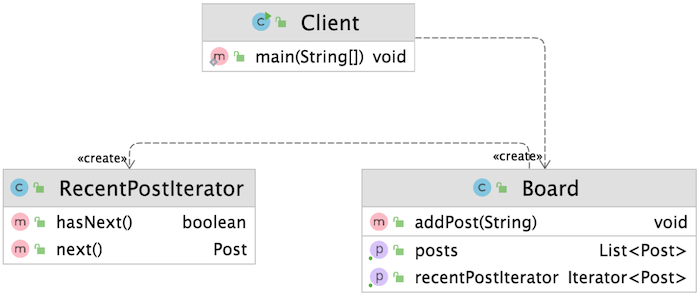

gof_3_9

4.2 예시 - 기존

1// Post.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before;
3
4import java.time.LocalDateTime;
5
6public class Post {
7
8  private String title;
9
10  private LocalDateTime createdDateTime;
11
12  public Post(String title) {
13    this.title = title;
14    this.createdDateTime = LocalDateTime.now();
15  }
16
17  public String getTitle() {
18    return title;
19  }
20
21  public void setTitle(String title) {
22    this.title = title;
23  }
24
25  public LocalDateTime getCreatedDateTime() {
26    return createdDateTime;
27  }
28
29  public void setCreatedDateTime(LocalDateTime createdDateTime) {
30    this.createdDateTime = createdDateTime;
31  }
32}

1// Board.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before;
3
4import java.util.ArrayList;
5import java.util.List;
6
7public class Board {
8
9  List<Post> posts = new ArrayList<>();
10
11  public List<Post> getPosts() {
12    return posts;
13  }
14
15  public void setPosts(List<Post> posts) {
16    this.posts = posts;
17  }
18
19  public void addPost(String content) {
20    this.posts.add(new Post(content));
21  }
22}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before;
3
4import java.util.Collections;
5import java.util.List;
6
7public class Client {
8
9  public static void main(String[] args) {
10    Board board = new Board();
11    board.addPost("디자인 패턴 게임");
12    board.addPost("선생님, 저랑 디자인 패턴 하나 학습하시겠습니까?");
13    board.addPost(
14      "지금 이 자리에 계신 여러분들은 모두 디자인 패턴을 학습하고 계신 분들입니다."
15    );
16
17    // TODO 들어간 순서대로 순회하기
18    List<Post> posts = board.getPosts();
19    for (int i = 0; i < posts.size(); i++) {
20      Post post = posts.get(i);
21      System.out.println(post.getTitle());
22    }
23
24    // TODO 가장 최신 글 먼저 순회하기
25    Collections.sort(
26      posts,
27      (p1, p2) -> p2.getCreatedDateTime().compareTo(p1.getCreatedDateTime())
28    );
29    for (int i = 0; i < posts.size(); i++) {
30      Post post = posts.get(i);
31      System.out.println(post.getTitle());
32    }
33  }
34}

4.3 예시 - 변경

1// RecentPostIterator.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._02_after;
3
4import java.util.Collections;
5import java.util.Iterator;
6import java.util.List;
7import me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before.Post;
8
9public class RecentPostIterator implements Iterator<Post> {
10
11  private Iterator<Post> internalIterator;
12
13  public RecentPostIterator(List<Post> posts) {
14    Collections.sort(
15      posts,
16      (p1, p2) -> p2.getCreatedDateTime().compareTo(p1.getCreatedDateTime())
17    );
18    this.internalIterator = posts.iterator();
19  }
20
21  @Override
22  public boolean hasNext() {
23    return this.internalIterator.hasNext();
24  }
25
26  @Override
27  public Post next() {
28    return this.internalIterator.next();
29  }
30}

1// Board.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._02_after;
3
4import java.util.ArrayList;
5import java.util.Iterator;
6import java.util.List;
7import me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before.Post;
8
9public class Board {
10
11  List<Post> posts = new ArrayList<>();
12
13  public List<Post> getPosts() {
14    return posts;
15  }
16
17  public void addPost(String content) {
18    this.posts.add(new Post(content));
19  }
20
21  public Iterator<Post> getRecentPostIterator() {
22    return new RecentPostIterator(this.posts);
23  }
24}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._02_after;
3
4import java.util.Iterator;
5import java.util.List;
6import me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._01_before.Post;
7
8public class Client {
9
10  public static void main(String[] args) {
11    Board board = new Board();
12    board.addPost("디자인 패턴 게임");
13    board.addPost("선생님, 저랑 디자인 패턴 하나 학습하시겠습니까?");
14    board.addPost(
15      "지금 이 자리에 계신 여러분들은 모두 디자인 패턴을 학습하고 계신 분들입니다."
16    );
17
18    // TODO 들어간 순서대로 순회하기
19    List<Post> posts = board.getPosts();
20    Iterator<Post> iterator = posts.iterator();
21    System.out.println(iterator.getClass());
22
23    for (int i = 0; i < posts.size(); i++) {
24      Post post = posts.get(i);
25      System.out.println(post.getTitle());
26    }
27
28    // TODO 가장 최신 글 먼저 순회하기
29    Iterator<Post> recentPostIterator = board.getRecentPostIterator();
30    while (recentPostIterator.hasNext()) {
31      System.out.println(recentPostIterator.next().getTitle());
32    }
33  }
34}

4.4 장단점

장점
- 집합 객체가 가지고 있는 객체들에 손쉽게 접근할 수 있다.
- 일관된 인터페이스를 사용해 여러 형태의 집합 구조를 순회할 수 있다.
단점
- 클래스가 늘어나고 복잡도가 증가한다

4.5 실무에서 어떻게 쓰이나?

자바

java.util.Enumeration과 java.util.Iterator
Java StAX (Streaming API for XML)의 Iterator 기반 API
XmlEventReader, XmlEventWriter

1// IteratorInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._03_java;
3
4import java.io.FileInputStream;
5import java.io.FileNotFoundException;
6import java.util.Enumeration;
7import java.util.Iterator;
8import javax.xml.namespace.QName;
9import javax.xml.stream.XMLEventReader;
10import javax.xml.stream.XMLInputFactory;
11import javax.xml.stream.XMLStreamException;
12import javax.xml.stream.events.Attribute;
13import javax.xml.stream.events.StartElement;
14import javax.xml.stream.events.XMLEvent;
15import me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._02_after.Board;
16
17public class IteratorInJava {
18
19  public static void main(String[] args)
20    throws FileNotFoundException, XMLStreamException {
21    Enumeration enumeration;
22    Iterator iterator;
23
24    Board board = new Board();
25    board.addPost("디자인 패턴 게임");
26    board.addPost("선생님, 저랑 디자인 패턴 하나 학습하시겠습니까?");
27    board.addPost(
28      "지금 이 자리에 계신 여러분들은 모두 디자인 패턴을 학습하고 계신 분들입니다."
29    );
30
31    // board.getPosts().iterator().forEachRemaining(p -> System.out.println(p.getTitle()));
32
33    // TODO Streaming API for XML(StAX), 이터레이터 기반의 API
34    XMLInputFactory xmlInputFactory = XMLInputFactory.newInstance();
35    XMLEventReader reader = xmlInputFactory.createXMLEventReader(
36      new FileInputStream("Book.xml")
37    );
38
39    while (reader.hasNext()) {
40      XMLEvent nextEvent = reader.nextEvent();
41      if (nextEvent.isStartElement()) {
42        StartElement startElement = nextEvent.asStartElement();
43        QName name = startElement.getName();
44        if (name.getLocalPart().equals("book")) {
45          Attribute title = startElement.getAttributeByName(new QName("title"));
46          System.out.println(title.getValue());
47        }
48      }
49    }
50  }
51}

스프링

CompositeIterator

1// IteratorInSpring.java
2package me.whiteship.designpatterns._03_behavioral_patterns._16_iterator._03_java;
3
4import org.springframework.util.CompositeIterator;
5
6public class IteratorInSpring {
7
8  public static void main(String[] args) {
9    CompositeIterator iterator;
10  }
11}

5. 중재자(Mediator) 패턴

5.1 패턴 소개

gof_3_10

여러 객체들이 소통하는 방법을 캡슐화하는 패턴.

여러 컴포넌트간의 결합도를 중재자를 통해 낮출 수 있다.

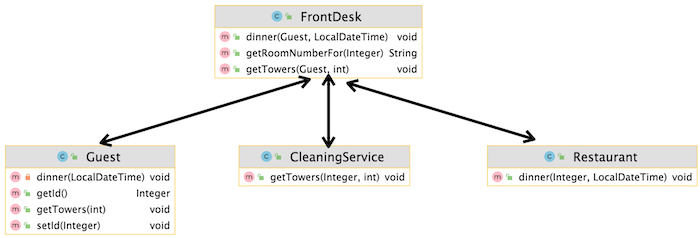

gof_3_11

5.2 예시 - 기존

1// Guest.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._01_before;
3
4public class Guest {
5
6  private Restaurant restaurant = new Restaurant();
7
8  private CleaningService cleaningService = new CleaningService();
9
10  public void dinner() {
11    restaurant.dinner(this);
12  }
13
14  public void getTower(int numberOfTower) {
15    cleaningService.getTower(this, numberOfTower);
16  }
17}

1// Gym.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._01_before;
3
4public class Gym {
5
6  private CleaningService cleaningService;
7
8  public void clean() {
9    cleaningService.clean(this);
10  }
11}

1// Restaurant.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._01_before;
3
4public class Restaurant {
5
6  private CleaningService cleaningService = new CleaningService();
7
8  public void dinner(Guest guest) {
9    System.out.println("dinner " + guest);
10  }
11
12  public void clean() {
13    cleaningService.clean(this);
14  }
15}

1// CleaningService.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._01_before;
3
4public class CleaningService {
5
6  public void clean(Gym gym) {
7    System.out.println("clean " + gym);
8  }
9
10  public void getTower(Guest guest, int numberOfTower) {
11    System.out.println(numberOfTower + " towers to " + guest);
12  }
13
14  public void clean(Restaurant restaurant) {
15    System.out.println("clean " + restaurant);
16  }
17}

1// Hotel.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._01_before;
3
4public class Hotel {
5
6  public static void main(String[] args) {
7    Guest guest = new Guest();
8    guest.getTower(3);
9    guest.dinner();
10
11    Restaurant restaurant = new Restaurant();
12    restaurant.clean();
13  }
14}

5.3 예시 - 변경

1// CleaningService.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._02_after;
3
4public class CleaningService {
5
6  private FrontDesk frontDesk = new FrontDesk();
7
8  public void getTowers(Integer guestId, int numberOfTowers) {
9    String roomNumber = this.frontDesk.getRoomNumberFor(guestId);
10    System.out.println("provide " + numberOfTowers + " to " + roomNumber);
11  }
12}

1// Guest.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._02_after;
3
4import java.time.LocalDateTime;
5
6public class Guest {
7
8  private Integer id;
9
10  private FrontDesk frontDesk = new FrontDesk();
11
12  public void getTowers(int numberOfTowers) {
13    this.frontDesk.getTowers(this, numberOfTowers);
14  }
15
16  private void dinner(LocalDateTime dateTime) {
17    this.frontDesk.dinner(this, dateTime);
18  }
19
20  public Integer getId() {
21    return id;
22  }
23
24  public void setId(Integer id) {
25    this.id = id;
26  }
27}

1// Restaurant.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._02_after;
3
4import java.time.LocalDateTime;
5
6public class Restaurant {
7
8  public void dinner(Integer id, LocalDateTime dateTime) {}
9}

1// FrontDesk.java
2package me.whiteship.designpatterns._03_behavioral_patterns._17_mediator._02_after;
3
4import java.time.LocalDateTime;
5
6public class FrontDesk {
7
8  private CleaningService cleaningService = new CleaningService();
9
10  private Restaurant restaurant = new Restaurant();
11
12  public void getTowers(Guest guest, int numberOfTowers) {
13    cleaningService.getTowers(guest.getId(), numberOfTowers);
14  }
15
16  public String getRoomNumberFor(Integer guestId) {
17    return "1111";
18  }
19
20  public void dinner(Guest guest, LocalDateTime dateTime) {
21    restaurant.dinner(guest.getId(), dateTime);
22  }
23}

5.4 장단점

장점
- 컴포넌트 코드를 변경하지 않고 새로운 중재자를 만들어 사용할 수 있다.
- 각각의 컴포넌트 코드를 보다 간결하게 유지할 수 있다.
단점
- 중재자 역할을 하는 클래스의 복잡도와 결합도가 증가한다

5.5 실무에서 어떻게 쓰이나?

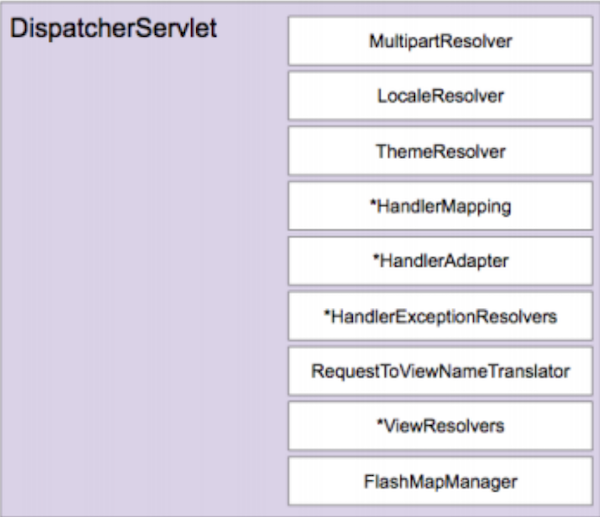

gof_3_12

자바
- ExecutorService
- Executor
스프링
- DispatcherServlet

6. 메멘토(Mediator) 패턴

6.1 패턴 소개

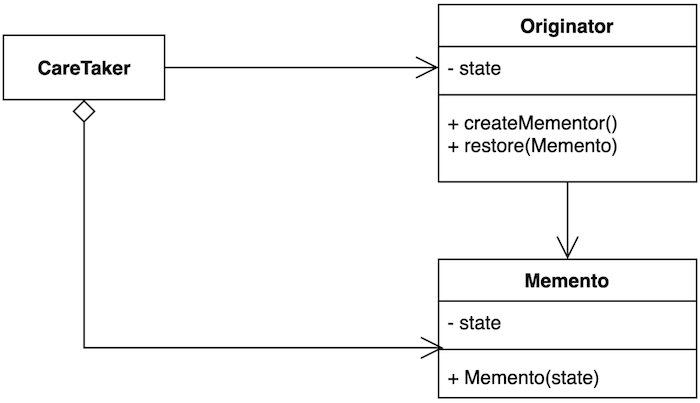

gof_3_13

캡슐화를 유지하면서 객체 내부 상태를 외부에 저장하는 방법.

객체 상태를 외부에 저장했다가 해당 상태로 다시 복구할 수 있다.

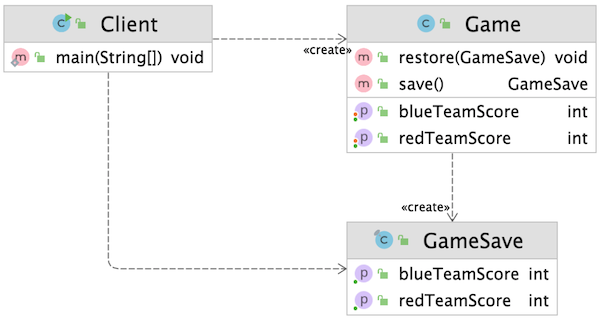

gof_3_14

6.2 예시 - 기존

1// Game.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._01_before;
3
4import java.io.Serializable;
5
6public class Game implements Serializable {
7
8  private int redTeamScore;
9
10  private int blueTeamScore;
11
12  public int getRedTeamScore() {
13    return redTeamScore;
14  }
15
16  public void setRedTeamScore(int redTeamScore) {
17    this.redTeamScore = redTeamScore;
18  }
19
20  public int getBlueTeamScore() {
21    return blueTeamScore;
22  }
23
24  public void setBlueTeamScore(int blueTeamScore) {
25    this.blueTeamScore = blueTeamScore;
26  }
27}
28

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Game game = new Game();
8    game.setRedTeamScore(10);
9    game.setBlueTeamScore(20);
10
11    int blueTeamScore = game.getBlueTeamScore();
12    int redTeamScore = game.getRedTeamScore();
13
14    Game restoredGame = new Game();
15    restoredGame.setBlueTeamScore(blueTeamScore);
16    restoredGame.setRedTeamScore(redTeamScore);
17  }
18}

6.3 예시 - 변경

1// GameSave.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._02_after;
3
4public final class GameSave {
5
6  private final int blueTeamScore;
7
8  private final int redTeamScore;
9
10  public GameSave(int blueTeamScore, int redTeamScore) {
11    this.blueTeamScore = blueTeamScore;
12    this.redTeamScore = redTeamScore;
13  }
14
15  public int getBlueTeamScore() {
16    return blueTeamScore;
17  }
18
19  public int getRedTeamScore() {
20    return redTeamScore;
21  }
22}

1// Game.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._02_after;
3
4public class Game {
5
6  private int redTeamScore;
7
8  private int blueTeamScore;
9
10  public int getRedTeamScore() {
11    return redTeamScore;
12  }
13
14  public void setRedTeamScore(int redTeamScore) {
15    this.redTeamScore = redTeamScore;
16  }
17
18  public int getBlueTeamScore() {
19    return blueTeamScore;
20  }
21
22  public void setBlueTeamScore(int blueTeamScore) {
23    this.blueTeamScore = blueTeamScore;
24  }
25
26  public GameSave save() {
27    return new GameSave(this.blueTeamScore, this.redTeamScore);
28  }
29
30  public void restore(GameSave gameSave) {
31    this.blueTeamScore = gameSave.getBlueTeamScore();
32    this.redTeamScore = gameSave.getRedTeamScore();
33  }
34}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Game game = new Game();
8    game.setBlueTeamScore(10);
9    game.setRedTeamScore(20);
10
11    GameSave save = game.save();
12
13    game.setBlueTeamScore(12);
14    game.setRedTeamScore(22);
15
16    game.restore(save);
17
18    System.out.println(game.getBlueTeamScore());
19    System.out.println(game.getRedTeamScore());
20  }
21}

6.4 장단점

장점
- 캡슐화를 지키면서 상태 객체 상태 스냅샷을 만들 수 있다.
- 객체 상태 저장하고 또는 복원하는 역할을 CareTaker에게 위임할 수 있다.
- 객체 상태가 바뀌어도 클라이언트 코드는 변경되지 않는다.
단점
- 많은 정보를 저장하는 Mementor를 자주 생성하는 경우 메모리 사용량에 많은 영향을 줄 수 있 다

6.5 실무에서 어떻게 쓰이나?

자바

객체 직렬화, java.io.Serializable
java.util.Date

1// MementoInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._18_memento._03_java;
3
4import java.io.*;
5import me.whiteship.designpatterns._03_behavioral_patterns._18_memento._01_before.Game;
6
7public class MementoInJava {
8
9  public static void main(String[] args)
10    throws IOException, ClassNotFoundException {
11    // TODO Serializable
12    Game game = new Game();
13    game.setRedTeamScore(10);
14    game.setBlueTeamScore(20);
15
16    // TODO 직렬화
17    try (
18      FileOutputStream fileOut = new FileOutputStream("GameSave.hex");
19      ObjectOutputStream out = new ObjectOutputStream(fileOut)
20    ) {
21      out.writeObject(game);
22    }
23
24    game.setBlueTeamScore(25);
25    game.setRedTeamScore(15);
26
27    // TODO 역직렬화
28    try (
29      FileInputStream fileIn = new FileInputStream("GameSave.hex");
30      ObjectInputStream in = new ObjectInputStream(fileIn)
31    ) {
32      game = (Game) in.readObject();
33      System.out.println(game.getBlueTeamScore());
34      System.out.println(game.getRedTeamScore());
35    }
36  }
37}

8. 옵저버(Observer) 패턴

8.1 패턴 소개

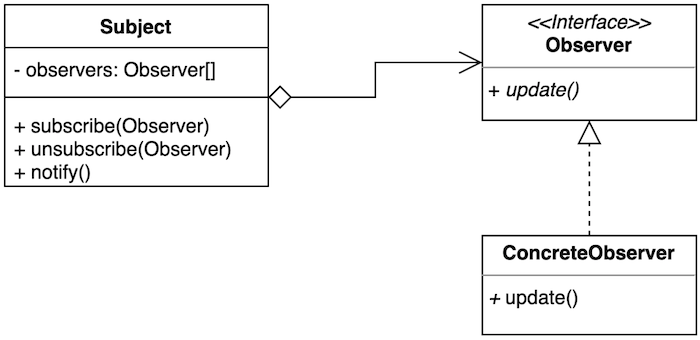

gof_3_15

다수의 객체가 특정 객체 상태 변화를 감지하고 알림을 받는 패턴.

발행(publish)-구독(subscribe) 패턴을 구현할 수 있다.

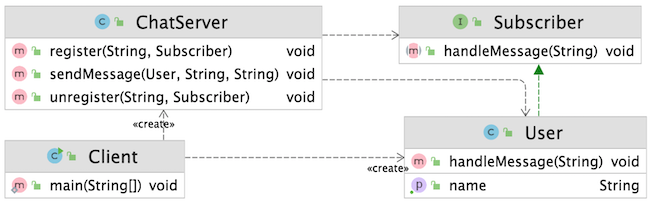

gof_3_16

8.2 예시 - 기존

1// ChatServer.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._01_before;
3
4import java.util.ArrayList;
5import java.util.HashMap;
6import java.util.List;
7import java.util.Map;
8
9public class ChatServer {
10
11  private Map<String, List<String>> messages;
12
13  public ChatServer() {
14    this.messages = new HashMap<>();
15  }
16
17  public void add(String subject, String message) {
18    if (messages.containsKey(subject)) {
19      messages.get(subject).add(message);
20    } else {
21      List<String> messageList = new ArrayList<>();
22      messageList.add(message);
23      messages.put(subject, messageList);
24    }
25  }
26
27  public List<String> getMessage(String subject) {
28    return messages.get(subject);
29  }
30}

1// User.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._01_before;
3
4import java.util.List;
5
6public class User {
7
8  private ChatServer chatServer;
9
10  public User(ChatServer chatServer) {
11    this.chatServer = chatServer;
12  }
13
14  public void sendMessage(String subject, String message) {
15    chatServer.add(subject, message);
16  }
17
18  public List<String> getMessage(String subject) {
19    return chatServer.getMessage(subject);
20  }
21}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    ChatServer chatServer = new ChatServer();
8
9    User user1 = new User(chatServer);
10    user1.sendMessage("디자인패턴", "이번엔 옵저버 패턴입니다.");
11    user1.sendMessage("롤드컵2021", "LCK 화이팅!");
12
13    User user2 = new User(chatServer);
14    System.out.println(user2.getMessage("디자인패턴"));
15
16    user1.sendMessage("디자인패턴", "예제 코드 보는 중..");
17    System.out.println(user2.getMessage("디자인패턴"));
18  }
19}

8.3 예시 - 변경

1// Subscriber.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._02_after;
3
4public interface Subscriber {
5  void handleMessage(String message);
6}

1// User.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._02_after;
3
4public class User implements Subscriber {
5
6  private String name;
7
8  public User(String name) {
9    this.name = name;
10  }
11
12  public String getName() {
13    return name;
14  }
15
16  @Override
17  public void handleMessage(String message) {
18    System.out.println(message);
19  }
20}

1// ChatServer.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._02_after;
3
4import java.util.ArrayList;
5import java.util.HashMap;
6import java.util.List;
7import java.util.Map;
8
9public class ChatServer {
10
11  private Map<String, List<Subscriber>> subscribers = new HashMap<>();
12
13  public void register(String subject, Subscriber subscriber) {
14    if (this.subscribers.containsKey(subject)) {
15      this.subscribers.get(subject).add(subscriber);
16    } else {
17      List<Subscriber> list = new ArrayList<>();
18      list.add(subscriber);
19      this.subscribers.put(subject, list);
20    }
21  }
22
23  public void unregister(String subject, Subscriber subscriber) {
24    if (this.subscribers.containsKey(subject)) {
25      this.subscribers.get(subject).remove(subscriber);
26    }
27  }
28
29  public void sendMessage(User user, String subject, String message) {
30    if (this.subscribers.containsKey(subject)) {
31      String userMessage = user.getName() + ": " + message;
32      this.subscribers.get(subject).forEach(s -> s.handleMessage(userMessage));
33    }
34  }
35}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    ChatServer chatServer = new ChatServer();
8    User user1 = new User("keesun");
9    User user2 = new User("whiteship");
10
11    chatServer.register("오징어게임", user1);
12    chatServer.register("오징어게임", user2);
13
14    chatServer.register("디자인패턴", user1);
15
16    chatServer.sendMessage(
17      user1,
18      "오징어게임",
19      "아.. 이름이 기억났어.. 일남이야.. 오일남"
20    );
21    chatServer.sendMessage(user2, "디자인패턴", "옵저버 패턴으로 만든 채팅");
22
23    chatServer.unregister("디자인패턴", user2);
24
25    chatServer.sendMessage(user2, "디자인패턴", "옵저버 패턴 장, 단점 보는 중");
26  }
27}

8.4 장단점

장점
- 상태를 변경하는 객체(publisher)와 변경을 감지하는 객체(subsriber)의 관계를 느슨하게 유지할 수 있다.
- Subject의 상태 변경을 주기적으로 조회하지 않고 자동으로 감지할 수 있다.
- 런타임에 옵저버를 추가하거나 제거할 수 있다.
단점
- 복잡도가 증가한다.
- 다수의 Observer 객체를 등록 이후 해지 않는다면 memory leak이 발생할 수도 있다

8.5 실무에서 어떻게 쓰이나?

자바

Observable과 Observer (자바 9부터 deprecated)
자바 9 이후 부터는
- PropertyChangeListener, PropertyChangeEvent
- Flow API
SAX (Simple API for XML) 라이브러리

1// ObserverInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4import java.util.Observable;
5import java.util.Observer;
6
7public class ObserverInJava {
8
9  static class User implements Observer {
10
11    @Override
12    public void update(Observable o, Object arg) {
13      System.out.println(arg);
14    }
15  }
16
17  static class Subject extends Observable {
18
19    public void add(String message) {
20      setChanged();
21      notifyObservers(message);
22    }
23  }
24
25  public static void main(String[] args) {
26    Subject subject = new Subject();
27    User user = new User();
28    subject.addObserver(user);
29    subject.add("Hello Java, Observer");
30  }
31}

1// PropertyChangeExample.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4import java.beans.PropertyChangeEvent;
5import java.beans.PropertyChangeListener;
6import java.beans.PropertyChangeSupport;
7
8public class PropertyChangeExample {
9
10  static class User implements PropertyChangeListener {
11
12    @Override
13    public void propertyChange(PropertyChangeEvent evt) {
14      System.out.println(evt.getNewValue());
15    }
16  }
17
18  static class Subject {
19
20    PropertyChangeSupport support = new PropertyChangeSupport(this);
21
22    public void addObserver(PropertyChangeListener observer) {
23      support.addPropertyChangeListener(observer);
24    }
25
26    public void removeObserver(PropertyChangeListener observer) {
27      support.removePropertyChangeListener(observer);
28    }
29
30    public void add(String message) {
31      support.firePropertyChange("eventName", null, message);
32    }
33  }
34
35  public static void main(String[] args) {
36    Subject subject = new Subject();
37    User observer = new User();
38    subject.addObserver(observer);
39    subject.add("자바 PCL 예제 코드");
40    subject.removeObserver(observer);
41    subject.add("이 메시지는 볼 수 없지..");
42  }
43}

1// FlowInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4import java.util.concurrent.Flow;
5import java.util.concurrent.SubmissionPublisher;
6
7public class FlowInJava {
8
9  public static void main(String[] args) throws InterruptedException {
10    Flow.Publisher<String> publisher = new SubmissionPublisher<>();
11
12    Flow.Subscriber<String> subscriber = new Flow.Subscriber<String>() {
13      private Flow.Subscription subscription;
14
15      @Override
16      public void onSubscribe(Flow.Subscription subscription) {
17        System.out.println("sub!");
18        this.subscription = subscription;
19        this.subscription.request(1);
20      }
21
22      @Override
23      public void onNext(String item) {
24        System.out.println("onNext called");
25        System.out.println(Thread.currentThread().getName());
26        System.out.println(item);
27      }
28
29      @Override
30      public void onError(Throwable throwable) {}
31
32      @Override
33      public void onComplete() {
34        System.out.println("completed");
35      }
36    };
37
38    publisher.subscribe(subscriber);
39
40    ((SubmissionPublisher) publisher).submit("hello java");
41
42    System.out.println("이게 먼저 출력될 수도 있습니다.");
43  }
44}

스프링

ApplicationContext와 ApplicationEvent

1// MyEvent.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4public class MyEvent {
5
6  private String message;
7
8  public MyEvent(String message) {
9    this.message = message;
10  }
11
12  public String getMessage() {
13    return message;
14  }
15}

1// MyEventListener.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4import org.springframework.context.event.EventListener;
5import org.springframework.stereotype.Component;
6
7@Component
8public class MyEventListener {
9
10  @EventListener(MyEvent.class)
11  public void onApplicationEvent(MyEvent event) {
12    System.out.println(event.getMessage());
13  }
14}

1// MyRunner.java
2package me.whiteship.designpatterns._03_behavioral_patterns._19_observer._03_java;
3
4import org.springframework.boot.ApplicationArguments;
5import org.springframework.boot.ApplicationRunner;
6import org.springframework.context.ApplicationEventPublisher;
7import org.springframework.stereotype.Component;
8
9@Component
10public class MyRunner implements ApplicationRunner {
11
12  private ApplicationEventPublisher publisher;
13
14  public MyRunner(ApplicationEventPublisher publisher) {
15    this.publisher = publisher;
16  }
17
18  @Override
19  public void run(ApplicationArguments args) throws Exception {
20    publisher.publishEvent(new MyEvent("hello spring event"));
21  }
22}

9. 상태(State) 패턴

9.1 패턴 소개

gof_3_17

객체 내부 상태 변경에 따라 객체의 행동이 달라지는 패턴.

상태에 특화된 행동들을 분리해 낼 수 있으며, 새로운 행동을 추가하더라도 다른 행동에 영향을 주지 않는다.

gof_3_18

9.2 예시 - 기존

1// Student.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._01_before;
3
4import java.util.ArrayList;
5import java.util.List;
6
7public class Student {
8
9  private String name;
10
11  public Student(String name) {
12    this.name = name;
13  }
14
15  private List<OnlineCourse> privateCourses = new ArrayList<>();
16
17  public boolean isEnabledForPrivateClass(OnlineCourse onlineCourse) {
18    return privateCourses.contains(onlineCourse);
19  }
20
21  public void addPrivateCourse(OnlineCourse onlineCourse) {
22    this.privateCourses.add(onlineCourse);
23  }
24
25  @Override
26  public String toString() {
27    return "Student{" + "name='" + name + '\'' + '}';
28  }
29}

1// OnlineCourse.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._01_before;
3
4import java.util.ArrayList;
5import java.util.List;
6
7public class OnlineCourse {
8
9  public enum State {
10    DRAFT,
11    PUBLISHED,
12    PRIVATE,
13  }
14
15  private State state = State.DRAFT;
16
17  private List<String> reviews = new ArrayList<>();
18
19  private List<Student> students = new ArrayList<>();
20
21  public void addReview(String review, Student student) {
22    if (this.state == State.PUBLISHED) {
23      this.reviews.add(review);
24    } else if (this.state == State.PRIVATE && this.students.contains(student)) {
25      this.reviews.add(review);
26    } else {
27      throw new UnsupportedOperationException("리뷰를 작성할 수 없습니다.");
28    }
29  }
30
31  public void addStudent(Student student) {
32    if (this.state == State.DRAFT || this.state == State.PUBLISHED) {
33      this.students.add(student);
34    } else if (this.state == State.PRIVATE && availableTo(student)) {
35      this.students.add(student);
36    } else {
37      throw new UnsupportedOperationException(
38        "학생을 해당 수업에 추가할 수 없습니다."
39      );
40    }
41
42    if (this.students.size() > 1) {
43      this.state = State.PRIVATE;
44    }
45  }
46
47  public void changeState(State newState) {
48    this.state = newState;
49  }
50
51  public State getState() {
52    return state;
53  }
54
55  public List<String> getReviews() {
56    return reviews;
57  }
58
59  public List<Student> getStudents() {
60    return students;
61  }
62
63  private boolean availableTo(Student student) {
64    return student.isEnabledForPrivateClass(this);
65  }
66}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Student student = new Student("whiteship");
8    OnlineCourse onlineCourse = new OnlineCourse();
9
10    Student keesun = new Student("keesun");
11    keesun.addPrivateCourse(onlineCourse);
12
13    onlineCourse.addStudent(student);
14    onlineCourse.changeState(OnlineCourse.State.PRIVATE);
15
16    onlineCourse.addStudent(keesun);
17
18    onlineCourse.addReview("hello", student);
19
20    System.out.println(onlineCourse.getState());
21    System.out.println(onlineCourse.getStudents());
22    System.out.println(onlineCourse.getReviews());
23  }
24}

9.3 예시 - 변경

1// State.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4public interface State {
5  void addReview(String review, Student student);
6
7  void addStudent(Student student);
8}

1// Draft.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4public class Draft implements State {
5
6  private OnlineCourse onlineCourse;
7
8  public Draft(OnlineCourse onlineCourse) {
9    this.onlineCourse = onlineCourse;
10  }
11
12  @Override
13  public void addReview(String review, Student student) {
14    throw new UnsupportedOperationException(
15      "드래프트 상태에서는 리뷰를 남길 수 없습니다."
16    );
17  }
18
19  @Override
20  public void addStudent(Student student) {
21    this.onlineCourse.getStudents().add(student);
22    if (this.onlineCourse.getStudents().size() > 1) {
23      this.onlineCourse.changeState(new Private(this.onlineCourse));
24    }
25  }
26}

1// Private.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4public class Private implements State {
5
6  private OnlineCourse onlineCourse;
7
8  public Private(OnlineCourse onlineCourse) {
9    this.onlineCourse = onlineCourse;
10  }
11
12  @Override
13  public void addReview(String review, Student student) {
14    if (this.onlineCourse.getStudents().contains(student)) {
15      this.onlineCourse.getReviews().add(review);
16    } else {
17      throw new UnsupportedOperationException(
18        "프라이빗 코스를 수강하는 학생만 리뷰를 남길 수 있습니다."
19      );
20    }
21  }
22
23  @Override
24  public void addStudent(Student student) {
25    if (student.isAvailable(this.onlineCourse)) {
26      this.onlineCourse.getStudents().add(student);
27    } else {
28      throw new UnsupportedOperationException(
29        "프라이빛 코스를 수강할 수 없습니다."
30      );
31    }
32  }
33}

1// Published.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4public class Published implements State {
5
6  private OnlineCourse onlineCourse;
7
8  public Published(OnlineCourse onlineCourse) {
9    this.onlineCourse = onlineCourse;
10  }
11
12  @Override
13  public void addReview(String review, Student student) {
14    this.onlineCourse.getReviews().add(review);
15  }
16
17  @Override
18  public void addStudent(Student student) {
19    this.onlineCourse.getStudents().add(student);
20  }
21}

1// OnlineCourse.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4import java.util.ArrayList;
5import java.util.List;
6
7public class OnlineCourse {
8
9  private State state = new Draft(this);
10
11  private List<Student> students = new ArrayList<>();
12
13  private List<String> reviews = new ArrayList<>();
14
15  public void addStudent(Student student) {
16    this.state.addStudent(student);
17  }
18
19  public void addReview(String review, Student student) {
20    this.state.addReview(review, student);
21  }
22
23  public State getState() {
24    return state;
25  }
26
27  public List<Student> getStudents() {
28    return students;
29  }
30
31  public List<String> getReviews() {
32    return reviews;
33  }
34
35  public void changeState(State state) {
36    this.state = state;
37  }
38}

1// Student.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4import java.util.HashSet;
5import java.util.Set;
6
7public class Student {
8
9  private String name;
10
11  public Student(String name) {
12    this.name = name;
13  }
14
15  private Set<OnlineCourse> onlineCourses = new HashSet<>();
16
17  public boolean isAvailable(OnlineCourse onlineCourse) {
18    return onlineCourses.contains(onlineCourse);
19  }
20
21  public void addPrivate(OnlineCourse onlineCourse) {
22    this.onlineCourses.add(onlineCourse);
23  }
24
25  @Override
26  public String toString() {
27    return "Student{" + "name='" + name + '\'' + '}';
28  }
29}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._20_state._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    OnlineCourse onlineCourse = new OnlineCourse();
8    Student student = new Student("whiteship");
9    Student keesun = new Student("keesun");
10    keesun.addPrivate(onlineCourse);
11
12    onlineCourse.addStudent(student);
13
14    onlineCourse.changeState(new Private(onlineCourse));
15
16    onlineCourse.addReview("hello", student);
17
18    onlineCourse.addStudent(keesun);
19
20    System.out.println(onlineCourse.getState());
21    System.out.println(onlineCourse.getReviews());
22    System.out.println(onlineCourse.getStudents());
23  }
24}

9.4 장단점

장점
- 상태에 따른 동작을 개별 클래스로 옮겨서 관리할 수 있다.
- 기존의 특정 상태에 따른 동작을 변경하지 않고 새로운 상태에 다른 동작을 추가할 수 있다.
- 코드 복잡도를 줄일 수 있다.
단점
- 복잡도가 증가한다

10. 전략(Strategy) 패턴

10.1 패턴 소개

gof_3_19

여러 알고리즘을 캡슐화하고 상호 교환 가능하게 만드는 패턴.

컨텍스트에서 사용할 알고리듬을 클라이언트 선택한다.

gof_3_20

10.2 예시 - 기존

1// BlueLightRedLight.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._01_before;
3
4public class BlueLightRedLight {
5
6  private int speed;
7
8  public BlueLightRedLight(int speed) {
9    this.speed = speed;
10  }
11
12  public void blueLight() {
13    if (speed == 1) {
14      System.out.println("무 궁 화    꽃   이");
15    } else if (speed == 2) {
16      System.out.println("무궁화꽃이");
17    } else {
18      System.out.println("무광꼬치");
19    }
20  }
21
22  public void redLight() {
23    if (speed == 1) {
24      System.out.println("피 었 습 니  다.");
25    } else if (speed == 2) {
26      System.out.println("피었습니다.");
27    } else {
28      System.out.println("피어씀다");
29    }
30  }
31}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    BlueLightRedLight blueLightRedLight = new BlueLightRedLight(3);
8    blueLightRedLight.blueLight();
9    blueLightRedLight.redLight();
10  }
11}

10.3 예시 - 변경

1// Speed.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public interface Speed {
5  void blueLight();
6
7  void redLight();
8}

1// Normal.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public class Normal implements Speed {
5
6  @Override
7  public void blueLight() {
8    System.out.println("무 궁 화    꽃   이");
9  }
10
11  @Override
12  public void redLight() {
13    System.out.println("피 었 습 니  다.");
14  }
15}

1// Faster.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public class Faster implements Speed {
5
6  @Override
7  public void blueLight() {
8    System.out.println("무궁화꽃이");
9  }
10
11  @Override
12  public void redLight() {
13    System.out.println("피었습니다.");
14  }
15}

1// Fastest.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public class Fastest implements Speed {
5
6  @Override
7  public void blueLight() {
8    System.out.println("무광꼬치");
9  }
10
11  @Override
12  public void redLight() {
13    System.out.println("피어씀다.");
14  }
15}

1// BlueLightRedLight.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public class BlueLightRedLight {
5
6  public void blueLight(Speed speed) {
7    speed.blueLight();
8  }
9
10  public void redLight(Speed speed) {
11    speed.redLight();
12  }
13}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    BlueLightRedLight game = new BlueLightRedLight();
8    game.blueLight(new Normal());
9    game.redLight(new Fastest());
10    game.blueLight(
11      new Speed() {
12        @Override
13        public void blueLight() {
14          System.out.println("blue light");
15        }
16
17        @Override
18        public void redLight() {
19          System.out.println("red light");
20        }
21      }
22    );
23  }
24}

10.4 장단점

장점
- 새로운 전략을 추가하더라도 기존 코드를 변경하지 않는다.
- 상속 대신 위임을 사용할 수 있다.
- 런타임에 전략을 변경할 수 있다.
단점
- 복잡도가 증가한다.
- 클라이언트 코드가 구체적인 전략을 알아야 한다

10.5 실무에서 어떻게 쓰이나?

자바의 Comparator

1package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._03_java;
2
3import java.util.ArrayList;
4import java.util.Collections;
5import java.util.Comparator;
6import java.util.List;
7
8public class StrategyInJava {
9
10  public static void main(String[] args) {
11    List<Integer> numbers = new ArrayList<>();
12    numbers.add(10);
13    numbers.add(5);
14
15    System.out.println(numbers);
16
17    Collections.sort(numbers, Comparator.naturalOrder());
18
19    System.out.println(numbers);
20  }
21}

스프링

ApplicationContext
PlatformTransactionManager
…

1// StrategyInSpring.java
2package me.whiteship.designpatterns._03_behavioral_patterns._21_strategy._03_java;
3
4import org.springframework.beans.factory.xml.BeanDefinitionParser;
5import org.springframework.cache.CacheManager;
6import org.springframework.context.ApplicationContext;
7import org.springframework.context.annotation.AnnotationConfigApplicationContext;
8import org.springframework.context.support.ClassPathXmlApplicationContext;
9import org.springframework.context.support.FileSystemXmlApplicationContext;
10import org.springframework.transaction.PlatformTransactionManager;
11
12public class StrategyInSpring {
13
14  public static void main(String[] args) {
15    ApplicationContext applicationContext = new ClassPathXmlApplicationContext();
16    ApplicationContext applicationContext1 = new FileSystemXmlApplicationContext();
17    ApplicationContext applicationContext2 = new AnnotationConfigApplicationContext();
18
19    BeanDefinitionParser parser;
20
21    PlatformTransactionManager platformTransactionManager;
22
23    CacheManager cacheManager;
24  }
25}

11. 템플릿 메소드(Template method) 패턴

11.1 패턴 소개

gof_3_21

알고리즘 구조를 서브 클래스가 확장할 수 있도록 템플릿으로 제공하는 방법.

추상 클래스는 템플릿을 제공하고 하위 클래스는 구체적인 알고리듬을 제공한다

gof_3_22

템플릿 콜백 (Template-Callback)

패턴 콜백으로 상속 대신 위임을 사용하는 템플릿 패턴.
상속 대신 익명 내부 클래스 또는 람다 표현식을 활용할 수 있다

gof_3_23

11.2 예시 - 기존

1// FileProcessor.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._01_before;
3
4import java.io.BufferedReader;
5import java.io.FileReader;
6import java.io.IOException;
7
8public class FileProcessor {
9
10  private String path;
11
12  public FileProcessor(String path) {
13    this.path = path;
14  }
15
16  public int process() {
17    try (BufferedReader reader = new BufferedReader(new FileReader(path))) {
18      int result = 0;
19      String line = null;
20      while ((line = reader.readLine()) != null) {
21        result += Integer.parseInt(line);
22      }
23      return result;
24    } catch (IOException e) {
25      throw new IllegalArgumentException(
26        path + "에 해당하는 파일이 없습니다.",
27        e
28      );
29    }
30  }
31}

1// MultuplyFileProcessor.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._01_before;
3
4import java.io.BufferedReader;
5import java.io.FileReader;
6import java.io.IOException;
7
8public class MultuplyFileProcessor {
9
10  private String path;
11
12  public MultuplyFileProcessor(String path) {
13    this.path = path;
14  }
15
16  public int process() {
17    try (BufferedReader reader = new BufferedReader(new FileReader(path))) {
18      int result = 0;
19      String line = null;
20      while ((line = reader.readLine()) != null) {
21        result *= Integer.parseInt(line);
22      }
23      return result;
24    } catch (IOException e) {
25      throw new IllegalArgumentException(
26        path + "에 해당하는 파일이 없습니다.",
27        e
28      );
29    }
30  }
31}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    FileProcessor fileProcessor = new FileProcessor("number.txt");
8    int result = fileProcessor.process();
9    System.out.println(result);
10  }
11}

11.3 예시 - 변경

1// FileProcessor.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4import java.io.BufferedReader;
5import java.io.FileReader;
6import java.io.IOException;
7
8public abstract class FileProcessor {
9
10  private String path;
11
12  public FileProcessor(String path) {
13    this.path = path;
14  }
15
16  public final int process(Operator operator) {
17    try (BufferedReader reader = new BufferedReader(new FileReader(path))) {
18      int result = 0;
19      String line = null;
20      while ((line = reader.readLine()) != null) {
21        result = getResult(result, Integer.parseInt(line));
22      }
23      return result;
24    } catch (IOException e) {
25      throw new IllegalArgumentException(
26        path + "에 해당하는 파일이 없습니다.",
27        e
28      );
29    }
30  }
31
32  protected abstract int getResult(int result, int number);
33}

1// Multiply.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4public class Multiply extends FileProcessor {
5
6  public Multiply(String path) {
7    super(path);
8  }
9
10  @Override
11  protected int getResult(int result, int number) {
12    return result *= number;
13  }
14}

1// Operator.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4public interface Operator {
5  abstract int getResult(int result, int number);
6}

1// FileProcessor.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4import java.io.BufferedReader;
5import java.io.FileReader;
6import java.io.IOException;
7
8public abstract class FileProcessor {
9
10  private String path;
11
12  public FileProcessor(String path) {
13    this.path = path;
14  }
15
16  public final int process(Operator operator) {
17    try (BufferedReader reader = new BufferedReader(new FileReader(path))) {
18      int result = 0;
19      String line = null;
20      while ((line = reader.readLine()) != null) {
21        result = getResult(result, Integer.parseInt(line));
22      }
23      return result;
24    } catch (IOException e) {
25      throw new IllegalArgumentException(
26        path + "에 해당하는 파일이 없습니다.",
27        e
28      );
29    }
30  }
31
32  protected abstract int getResult(int result, int number);
33}

1// Plus.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4public class Plus implements Operator {
5
6  @Override
7  public int getResult(int result, int number) {
8    return result += number;
9  }
10}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    FileProcessor fileProcessor = new Multiply("number.txt");
8    int result = fileProcessor.process((sum, number) -> sum += number);
9    System.out.println(result);
10  }
11}

11.4 장단점

장점
- 템플릿 코드를 재사용하고 중복 코드를 줄일 수 있다.
- 템플릿 코드를 변경하지 않고 상속을 받아서 구체적인 알고리듬만 변경할 수 있다.
단점
- 리스코프 치환 원칙을 위반할 수도 있다.
- 알고리듬 구조가 복잡할 수록 템플릿을 유지하기 어려워진다

11.5 실무에서 어떻게 쓰이나?

자바의 HttpServlet

1// MyHello.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._03_java;
3
4import java.io.IOException;
5import javax.servlet.ServletException;
6import javax.servlet.http.HttpServlet;
7import javax.servlet.http.HttpServletRequest;
8import javax.servlet.http.HttpServletResponse;
9
10public class MyHello extends HttpServlet {
11
12  @Override
13  protected void doGet(HttpServletRequest req, HttpServletResponse resp)
14    throws ServletException, IOException {
15    super.doGet(req, resp);
16  }
17
18  @Override
19  protected void doPost(HttpServletRequest req, HttpServletResponse resp)
20    throws ServletException, IOException {
21    super.doPost(req, resp);
22  }
23}

스프링

템플릿 메소드 패턴
- Configuration
템플릿 콜백 패턴
- JdbcTemplate
- RestTemplate
- …

1// TemplateInSpring.java
2package me.whiteship.designpatterns._03_behavioral_patterns._22_template._03_java;
3
4import java.util.Arrays;
5import org.springframework.context.annotation.Configuration;
6import org.springframework.http.*;
7import org.springframework.jdbc.core.JdbcTemplate;
8import org.springframework.security.config.annotation.web.builders.HttpSecurity;
9import org.springframework.security.config.annotation.web.configuration.WebSecurityConfigurerAdapter;
10import org.springframework.web.client.RestTemplate;
11
12public class TemplateInSpring {
13
14  public static void main(String[] args) {
15    // TODO 템플릿-콜백 패턴
16    // JdbcTemplate
17    JdbcTemplate jdbcTemplate = new JdbcTemplate();
18    jdbcTemplate.execute("insert");
19
20    // RestTemplate
21    RestTemplate restTemplate = new RestTemplate();
22
23    HttpHeaders headers = new HttpHeaders();
24    headers.setAccept(Arrays.asList(MediaType.APPLICATION_JSON));
25    headers.set("X-COM-PERSIST", "NO");
26    headers.set("X-COM-LOCATION", "USA");
27
28    HttpEntity<String> entity = new HttpEntity<String>(headers);
29    ResponseEntity<String> responseEntity = restTemplate.exchange(
30      "http://localhost:8080/users",
31      HttpMethod.GET,
32      entity,
33      String.class
34    );
35  }
36
37  @Configuration
38  class SecurityConfig extends WebSecurityConfigurerAdapter {
39
40    @Override
41    protected void configure(HttpSecurity http) throws Exception {
42      http.authorizeRequests().anyRequest().permitAll();
43    }
44  }
45}

12. 방문자(Visitor) 패턴

12.1 패턴 소개

gof_3_24

기존 코드를 변경하지 않고 새로운 기능을 추가하는 방법.

더블 디스패치 (Double Dispatch)를 활용할 수 있다.

12.2 예시 - 기존

1// Device.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public interface Device {}

1// Phone.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public class Phone implements Device {}

1// Watch.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public class Watch implements Device {}

1// Shape.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public interface Shape {
5  void printTo(Device device);
6}

1// Triangle.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public class Triangle implements Shape {
5
6  @Override
7  public void printTo(Device device) {
8    if (device instanceof Phone) {
9      System.out.println("print Triangle to Phone");
10    } else if (device instanceof Watch) {
11      System.out.println("print Triangle to Watch");
12    }
13  }
14}

1// Circle.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public class Circle implements Shape {
5
6  @Override
7  public void printTo(Device device) {
8    if (device instanceof Phone) {
9      System.out.println("print Circle to phone");
10    } else if (device instanceof Watch) {
11      System.out.println("print Circle to watch");
12    }
13  }
14}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._01_before;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Shape rectangle = new Rectangle();
8    Device device = new Phone();
9    rectangle.printTo(device);
10  }
11}

12.3 예시 - 변경

1// Device.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public interface Device {
5  void print(Circle circle);
6
7  void print(Rectangle rectangle);
8
9  void print(Triangle triangle);
10}

1// Pad.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Pad implements Device {
5
6  @Override
7  public void print(Circle circle) {
8    System.out.println("Print Circle to Pad");
9  }
10
11  @Override
12  public void print(Rectangle rectangle) {
13    System.out.println("Print Rectangle to Pad");
14  }
15
16  @Override
17  public void print(Triangle triangle) {
18    System.out.println("Print Triangle to Pad");
19  }
20}

1// Phone.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Phone implements Device {
5
6  @Override
7  public void print(Circle circle) {
8    System.out.println("Print Circle to Phone");
9  }
10
11  @Override
12  public void print(Rectangle rectangle) {
13    System.out.println("Print Rectangle to Phone");
14  }
15
16  @Override
17  public void print(Triangle triangle) {
18    System.out.println("Print Triangle to Phone");
19  }
20}

1// Watch.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Watch implements Device {
5
6  @Override
7  public void print(Circle circle) {
8    System.out.println("Print Circle to Watch");
9  }
10
11  @Override
12  public void print(Rectangle rectangle) {
13    System.out.println("Print Rectangle to Watch");
14  }
15
16  @Override
17  public void print(Triangle triangle) {
18    System.out.println("Print Triangle to Watch");
19  }
20}

1// Shape.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public interface Shape {
5  void accept(Device device);
6}

1// Circle.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Circle implements Shape {
5
6  @Override
7  public void accept(Device device) {
8    device.print(this);
9  }
10}

1// Triangle.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Triangle implements Shape {
5
6  @Override
7  public void accept(Device device) {
8    device.print(this);
9  }
10}

1// Rectangle.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Rectangle implements Shape {
5
6  @Override
7  public void accept(Device device) {
8    device.print(this);
9  }
10}

1// Client.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._02_after;
3
4public class Client {
5
6  public static void main(String[] args) {
7    Shape rectangle = new Rectangle();
8    Device device = new Pad();
9    rectangle.accept(device);
10  }
11}

12.4 장단점

장점
- 기존 코드를 변경하지 않고 새로운 코드를 추가할 수 있다.
- 추가 기능을 한 곳에 모아둘 수 있다.
단점
- 복잡하다.
- 새로운 Element를 추가하거나 제거할 때 모든 Visitor 코드를 변경해야 한다

12.5 실무에서 어떻게 쓰이나?

자바

FileVisitor, SimpleFileVisitor
AnnotationValueVisitor
ElementVisitor

1// SearchFileVisitor.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._03_java;
3
4import java.io.IOException;
5import java.nio.file.*;
6import java.nio.file.attribute.BasicFileAttributes;
7
8public class SearchFileVisitor implements FileVisitor<Path> {
9
10  private String fileToSearch;
11  private Path startingDirectory;
12
13  public SearchFileVisitor(String fileToSearch, Path startingDirectory) {
14    this.fileToSearch = fileToSearch;
15    this.startingDirectory = startingDirectory;
16  }
17
18  @Override
19  public FileVisitResult preVisitDirectory(Path dir, BasicFileAttributes attrs)
20    throws IOException {
21    return FileVisitResult.CONTINUE;
22  }
23
24  @Override
25  public FileVisitResult visitFile(Path file, BasicFileAttributes attrs)
26    throws IOException {
27    if (fileToSearch.equals(file.getFileName().toString())) {
28      System.out.println("found " + file.getFileName());
29      return FileVisitResult.TERMINATE;
30    }
31    return FileVisitResult.CONTINUE;
32  }
33
34  @Override
35  public FileVisitResult visitFileFailed(Path file, IOException exc)
36    throws IOException {
37    exc.printStackTrace(System.out);
38    return FileVisitResult.CONTINUE;
39  }
40
41  @Override
42  public FileVisitResult postVisitDirectory(Path dir, IOException exc)
43    throws IOException {
44    if (Files.isSameFile(startingDirectory, dir)) {
45      System.out.println("search end");
46      return FileVisitResult.TERMINATE;
47    }
48    return FileVisitResult.CONTINUE;
49  }
50}

1// VisitorInJava.java
2package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._03_java;
3
4import java.io.IOException;
5import java.nio.file.Files;
6import java.nio.file.Path;
7
8public class VisitorInJava {
9
10  public static void main(String[] args) throws IOException {
11    Path startingDirectory = Path.of("/Users/keesun/workspace/design-patterns");
12    SearchFileVisitor searchFileVisitor = new SearchFileVisitor(
13      "Triangle.java",
14      startingDirectory
15    );
16    Files.walkFileTree(startingDirectory, searchFileVisitor);
17  }
18}

스프링의 BeanDefinitionVisitor

1package me.whiteship.designpatterns._03_behavioral_patterns._23_visitor._03_java;
2
3import org.springframework.beans.factory.config.BeanDefinitionVisitor;
4
5public class VisitorInSpring {
6
7  public static void main(String[] args) {
8    BeanDefinitionVisitor beanDefinitionVisitor;
9  }
10}

02-구조 패턴 01-소개
